Decoiler Machine — Manufacturer in India
Heavy-Duty Coil Handling for Reliable Uncoiling Operations

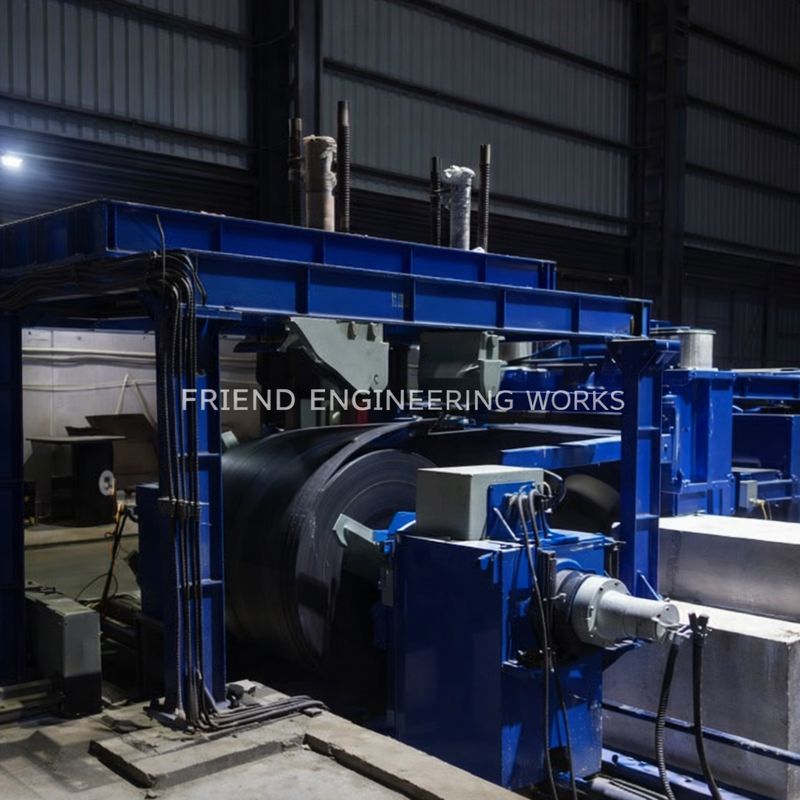

Our decoiler machines are designed for efficient and safe uncoiling operations with heavy-duty construction.
Decoilers are the critical first component in any coil processing line. Our heavy-duty decoilers are engineered to handle massive coil weights while providing smooth, controlled payoff. With hydraulic expansion mandrels, motorized or non-motorized options, and robust construction, these machines form the reliable foundation of your processing line. Available with optional coil cars for automated loading, our decoilers minimize changeover time and maximize production uptime.
Decoiler Machine Specifications
| Specification | Value |
|---|---|
| Coil Width Capacity | Up to 2000mm |
| Coil Inner Diameter | 508mm / 610mm |
| Maximum Coil Weight | Up to 40 tons |
| Mandrel Type | Hydraulic Expansion |
| Drive System | AC Motor with VFD |
| Construction | Heavy-Duty Fabricated Steel |
| Mounting | Floor Mounted |
| Options | Coil Car, Hold-Down Arm, Peeler |
Key Features
- Hydraulic Mandrel: Quick-acting hydraulic expansion for secure coil grip and fast changeover
- Heavy-Duty Frame: Welded steel construction designed for continuous industrial operation
- Variable Speed Drive: VFD-controlled motor provides smooth acceleration and precise speed control
- Coil Car Compatible: Integrate with motorized coil cars for safe, efficient coil loading
- Safety Features: Integrated safety systems including emergency stops and guards
- Low Maintenance: Simplified design with easy access points for routine maintenance
How Does a Decoiler Machine Work?
A decoiler (also called uncoiler or payoff reel) is essential coil handling equipment that holds metal coils and unwinds them at controlled rates for downstream processing. The decoiler is the first component in any coil processing line and its reliable operation is critical for consistent production.
- Coil Loading: The coil is transported to the decoiler by crane, forklift, or coil car. The coil is positioned on the mandrel (expanding drum) with proper centering.
- Mandrel Expansion: The hydraulic or pneumatic system expands the mandrel segments outward to grip the coil inner diameter securely. This prevents coil slip during unwinding.
- Coil Preparation: The hold-down arm (if equipped) secures the coil outer wrap. The peeler (if equipped) lifts the strip end for threading into the line.
- Strip Threading: The operator feeds the strip end through pinch rolls and into the downstream equipment. Initial threading may be manual or assisted.
- Controlled Unwinding: The decoiler unwinds the coil at controlled speed synchronized with line demand. Motorized decoilers use VFD drives; brake types use friction control.
- Tension Control: Proper back-tension is maintained throughout unwinding to prevent strip sagging or over-tensioning. This ensures smooth feeding to the processing line.
Types of Decoiler Machines We Manufacture
Friend Engineering Works manufactures a complete range of decoilers to match various coil weights, materials, and production requirements. Select the type that matches your application.
| Type | Capacity | Best For | Features |
|---|---|---|---|
| Motorized Decoiler | 3 - 40 tons | Continuous high-speed lines, synchronized operation | AC motor with VFD; Variable speed control; Line speed synchronization; Smooth acceleration/deceleration |
| Non-Motorized (Brake) Decoiler | 1 - 15 tons | Intermittent feeding, lighter operations, cost-effective | Friction brake system; Manual or pneumatic brake; Simple construction; Lower cost option |
| Hydraulic Expansion Decoiler | 10 - 40 tons | Heavy coils requiring secure grip and fast changeover | Hydraulic mandrel expansion; Quick coil loading; Secure grip for heavy coils; Robust construction |
| Double-Arm Decoiler | Up to 40 tons per arm | Non-stop production, high-volume operations | Two independent mandrels; Continuous production; Minimal changeover time; Maximum line utilization |
Key Components of a Decoiler
Decoilers are engineered with robust components designed for reliable operation with heavy coils. Understanding each component helps in proper operation and maintenance.
- Base Frame: Heavy-duty fabricated steel structure providing stable foundation for all components.
- Mandrel (Expanding Drum): Holds the coil by expanding against the inner diameter. Hydraulic or pneumatic expansion.
- Drive System: AC motor with VFD (motorized) or brake system (non-motorized) controls unwinding speed.
- Hold-Down Arm: Pneumatic or hydraulic arm that presses on the coil OD to prevent loose unwinding.
- Peeler: Lifts the strip leading edge from the coil for easy threading. May be hydraulic or pneumatic.
- Coil Car (Optional): Motorized carrier that transports coils to the decoiler for safe, efficient loading.
- Threading Table (Optional): Guides the strip from decoiler to the processing line during initial threading.
Industries Using Decoiler Machines
| Industry | Application | Benefits |
|---|---|---|
| Slitting Lines | Feeding master coils to slitting equipment | Smooth payoff essential for consistent slitting quality |
| Cut to Length Lines | Unwinding coils for sheet cutting operations | Controlled feeding ensures accurate sheet lengths |
| Roll Forming | Feeding strip to roll forming machines | Consistent tension prevents forming defects |
| Press Feeding | Supplying strip to stamping presses | Synchronized feeding for continuous press operation |
| Tube Mills | Feeding slit strip for welded tube production | Steady payoff critical for weld quality |
| Blanking Lines | Unwinding for blank cutting operations | Reliable feeding for high-speed blanking |
Friend Engineering Works Decoiler Advantages
Compare our decoiler specifications and capabilities with market standards.
| Feature | Friend Engineering Works | Industry Average |
|---|---|---|
| Maximum Capacity | Up to 40 tons | 20-25 tons |
| Coil Width Range | Up to 2000mm | 1500mm |
| Expansion System | Robust hydraulic | Basic pneumatic |
| Drive Control | VFD with encoder | Basic VFD |
| Construction | Heavy-duty fabricated | Standard |
| Coil Car Integration | Full integration available | Separate supplier |
| Service Support | 24/7 Pan-India | Limited |
Applications
- Slitting Line Feed
- Cut to Length Lines
- Pipe & Tube Mills
- Roll Forming Lines
- Press Feeding Systems
- Blanking Lines
Benefits
- Handle heavy coils safely
- Reduce coil loading time
- Smooth, tension-free payoff
- Long service life
- Minimal floor space required
- Easy integration with existing lines
Decoiler Maintenance Guide
Daily
- Inspect mandrel segments for wear
- Check hydraulic levels
- Verify brake operation
- Clean dust and debris
Weekly
- Lubricate all bearings
- Check expansion cylinder seals
- Inspect electrical connections
- Test safety systems
Monthly
- Full hydraulic system check
- Verify mandrel expansion range
- Inspect motor and drive
- Check foundation bolts
Quarterly
- Replace hydraulic filters
- Bearing condition assessment
- Electrical system inspection
- Full alignment check
Frequently Asked Questions about Decoiler Machine
What is a decoiler machine?
A decoiler machine (also called an uncoiler) is used to hold and unwind metal coils for feeding into processing lines like slitting, stamping, or roll forming machines.
What types of decoiler machines does Friend Engineering Works manufacture?
We manufacture manual decoilers, motorized decoilers, hydraulic decoilers, and double-arm decoilers with capacities ranging from 1 tonne to 40 tonnes.
Do you supply decoiler machines across India?
Yes. Friend Engineering Works supplies decoiler machines across India including Maharashtra, Gujarat, Delhi, Haryana, Tamil Nadu, and all major industrial cities.
What is the price of a decoiler machine in India?
Decoiler machine prices vary based on type and capacity. Contact us for a free custom quote tailored to your requirement.
How does a decoiler machine work?
A decoiler machine works in four steps: the coil is loaded onto the expanding mandrel (by coil car or crane), the mandrel expands to grip the coil's inner diameter, the holddown arm stabilizes the outer wraps, and the coil is unwound at a controlled speed — either pulled by the downstream line or driven by the decoiler's own motor. Speed and tension are regulated so the strip feeds smoothly without slack or overrun.
What is the difference between a motorized and hydraulic decoiler?
A motorized decoiler uses an electric motor for coil rotation and is ideal for medium loads. A hydraulic decoiler uses hydraulic expansion for heavy coils up to 40 tonnes and offers more precise control.
