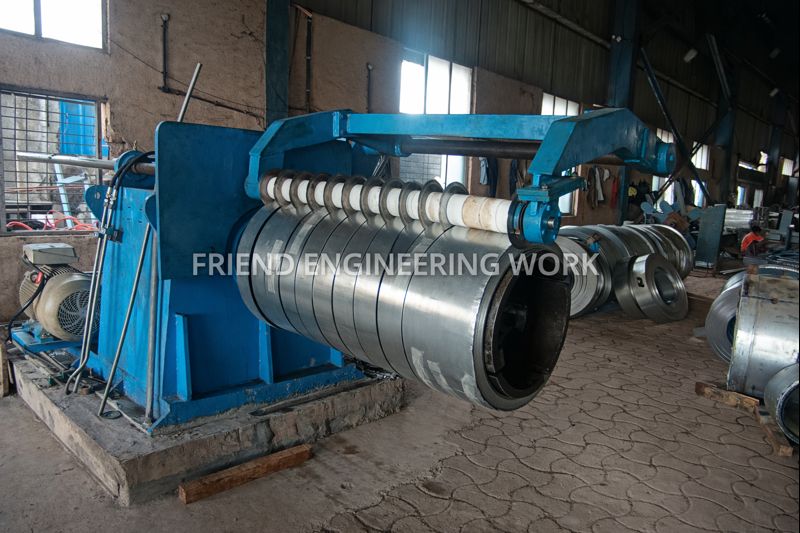

Recoiler Machine — Manufacturer in India
Precision Coil Rewinding for Tight, Uniform Strip Coils
Our recoiler machines provide consistent tension control for rewinding processed metal strips.
The recoiler is the final critical component in slitting operations, responsible for producing tight, well-formed coils ready for shipment or further processing. Our recoilers feature advanced tension control systems that maintain consistent strip tension throughout the coiling process. With expanding drums, separator disc systems, and provisions for strapping, our recoilers ensure your finished coils meet the highest quality standards.
Recoiler Machine Specifications
| Specification | Value |
|---|---|
| Coil Width Capacity | Up to 2000mm |
| Strip Thickness Range | 0.10mm - 10mm |
| Maximum Coil Weight | Up to 30 tons |
| Tension System | Pneumatic / Hydraulic |
| Drive System | AC Motor with VFD |
| Drum Type | Expanding Drum |
| Separator Type | Adjustable Disc Type |
| Coil OD Range | 500mm - 1500mm |
Key Features
- Tension Control: Pneumatic or hydraulic tension systems maintain consistent strip tension
- Expanding Drum: Hydraulic expansion drum for secure strip grip and easy coil removal
- Separator Discs: Adjustable separator system for multiple strip recoiling
- Quick Removal: Designed for fast coil extraction to minimize downtime
- Strapping Provision: Built-in provisions for coil strapping before removal
- Variable Speed: VFD drive matches line speed for synchronized operation
How Does a Recoiler Machine Work?
A recoiler (rewinder) is the final component in a slitting line that winds processed metal strips back into coils. The recoiler maintains proper tension throughout the winding process to produce tight, uniform coils suitable for shipment or further processing. Quality recoiling is critical for coil appearance and handling.
- Strip Threading: The slit strip ends are threaded through separator discs and attached to the recoiler mandrel (expanding drum). Belt wrappers may assist initial wraps.
- Drum Expansion: The mandrel segments expand hydraulically to grip the strip ends securely. This prevents strip slippage during initial winding.
- Tension Application: The tension system (pneumatic/hydraulic brakes or drives) applies controlled back-tension to each strip through the separator assembly.
- Coil Building: As the mandrel rotates, strips are wound into coils. Tension is maintained consistently as coil diameter increases.
- Coil Completion: When the coil reaches target weight or diameter, the line stops. Coils are strapped if equipped with strapping provision.
- Coil Removal: The mandrel contracts and the coil is removed—pushed off by a coil pusher, lifted by crane, or carried away by coil car.
Types of Recoiler Machines We Manufacture
Friend Engineering Works offers recoilers with various tension systems and configurations to match your slitting line requirements and finished coil specifications.
| Type | Capacity | Best For | Features |
|---|---|---|---|
| Tension Recoiler (Pneumatic) | Up to 15 tons | Light to medium gauge applications, cost-effective tension control | Pneumatic braking system; Adjustable tension; Good for CR materials; Reliable performance |
| Tension Recoiler (Hydraulic) | Up to 30 tons | Heavy gauge materials, high tension requirements | Hydraulic tension system; High force capacity; Precise control; Heavy-duty construction |
| Driven Recoiler | Up to 30 tons | High-speed lines, precise tension control | Motor-driven with torque control; Constant tension throughout; Smooth coil build; Best coil quality |
| Double-Drum Recoiler | Up to 25 tons per drum | High-volume production, minimal changeover | Two independent drums; Continuous operation; Quick coil change; Maximum productivity |
Key Components of a Recoiler
Recoilers are precision-engineered for consistent coil quality. Each component contributes to producing tight, uniform finished coils.
- Mandrel (Expanding Drum): Winds the strips into coils. Hydraulic expansion grips strips securely; contracts for coil removal.
- Separator Discs: Maintain spacing between individual slit strips during winding. Adjustable for various width combinations.
- Tension System: Applies controlled tension to strips. Pneumatic, hydraulic, or motor-driven systems available.
- Overarm Separator: Guides strips from tension station to separator discs, maintaining proper strip path and spacing.
- Belt Wrapper: Assists initial strip wrapping around the mandrel. Essential for thin gauge materials.
- Coil Pusher/Stripper: Removes finished coils from the mandrel after completion. Hydraulic cylinder pushes coil off.
- Drive System: Motor with VFD (driven recoiler) or brake system (tension recoiler) controls winding speed.
Industries Using Recoiler Machines
| Industry | Application | Benefits |
|---|---|---|
| Steel Service Centers | Recoiling slit strips for customer delivery | Tight, uniform coils ready for shipment |
| Pipe & Tube Mills | Supplying slit coils for tube production | Proper coil form for tube mill decoilers |
| Roll Forming | Providing slit coils for forming lines | Consistent payoff from well-wound coils |
| Stamping | Supplying narrow coils for press feeding | Uniform coil tension prevents feeding issues |
| Automotive | Slit strips for component manufacturing | Quality coils for demanding automotive applications |
| Metal Distribution | Processing and repackaging for resale | Professional coil appearance for customers |
Friend Engineering Works Recoiler Advantages
Our recoilers deliver superior coil quality through precision engineering and robust construction.
| Feature | Friend Engineering Works | Industry Average |
|---|---|---|
| Maximum Capacity | Up to 30 tons | 15-20 tons |
| Coil Width | Up to 2000mm | 1500mm |
| Tension Control | Precise throughout coil | Variable |
| Mandrel Expansion | Heavy-duty hydraulic | Standard |
| Separator System | Adjustable precision discs | Fixed |
| Coil Quality | Tight, uniform build | Acceptable |
| Service Support | 24/7 Pan-India | Limited |
Applications
- Slitting Line Integration
- Metal Service Centers
- Strip Processing Lines
- Coil Packaging
- Rewinding Operations
- Edge Trim Collection
Benefits
- Produce tight, uniform coils
- Consistent tension control
- Fast coil changeover
- Handle multiple strips simultaneously
- Reduce strip surface damage
- Ready for automated handling
Recoiler Maintenance Guide
Daily
- Inspect mandrel segments
- Check separator disc condition
- Verify tension settings
- Clean strip path
Weekly
- Lubricate all bearings
- Check hydraulic levels
- Inspect brake pads/discs
- Test expansion system
Monthly
- Full hydraulic system check
- Verify mandrel expansion
- Inspect drive components
- Check alignment
Quarterly
- Replace worn separator discs
- Hydraulic filter change
- Bearing assessment
- Complete system service
Frequently Asked Questions about Recoiler Machine
What is a recoiler machine?
A recoiler machine (also called a rewinder) winds processed metal strips back into coils after slitting or other metal processing operations.
What is the function of a recoiler machine?
A recoiler machine's function is to wind processed metal strip back into tight, uniform coils at the exit of a slitting or processing line. It applies controlled tension so coils are wound firmly without stretching the material, uses separator discs to keep multiple slit strips apart, and its expanding drum allows quick coil removal. Good recoiling determines whether finished coils are dispatch-ready or telescoped and loose.
What is the difference between a decoiler and recoiler machine?
A decoiler unwinds a raw metal coil to feed into a processing line, while a recoiler winds the processed strip back into a coil at the output end of the line.
Do you manufacture recoilers for slitting lines?
Yes. Our recoiler machines are specifically designed to work in sync with slitting lines and cut-to-length lines, with PLC-controlled speed matching.
Where are Friend Engineering Works recoiler machines used?
Our recoilers are used in steel service centers, automotive stamping plants, electrical transformer manufacturers, and pipe & tube mills across India.
Can I get a custom recoiler machine made?
Yes. We custom-engineer all recoiler machines based on your specific coil width, thickness, weight, and line speed requirements.
