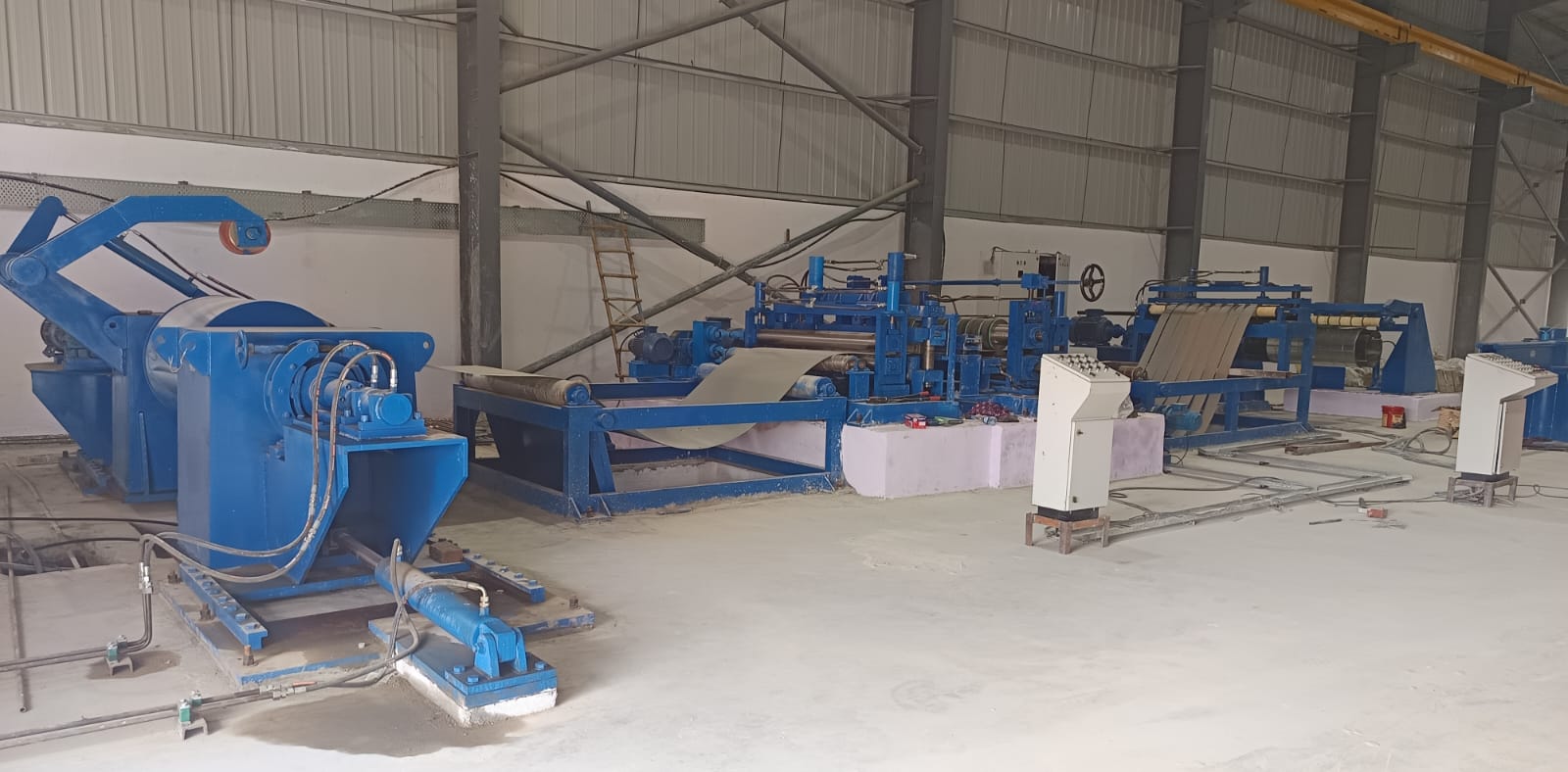

Slitting Line
High-Precision Metal Slitting Solutions for Maximum Productivity
Made in India
30+ Years
Product Overview
Our advanced slitting lines are engineered for precision metal processing, offering superior performance in converting master coils into narrower strips. Built with robust construction and state-of-the-art technology, these machines deliver consistent quality output with minimal material waste. Whether you need to process cold-rolled steel, hot-rolled steel, stainless steel, or aluminum, our slitting lines provide the reliability and accuracy your operations demand.
Key Features & Capabilities
PLC Controlled Operation
Advanced programmable logic control for precise, automated operation with minimal operator intervention
Wide Thickness Range
Process materials from 0.3mm to 10mm thickness with consistent precision across all gauges
High-Speed Processing
Optimized for maximum throughput without compromising on cut quality or edge finish
Precision Slitting
Rotary slitting technology delivers clean cuts with minimal burr formation
Heavy-Duty Build
Robust construction designed for 24/7 industrial operation and longevity
Flexible Configuration
Available in CR and HR configurations to match your specific processing needs
How Does a Slitting Line Work?
A slitting line is a metal processing system that converts wide master coils into multiple narrower strips of precise widths. The process uses rotary circular knives mounted on arbors to make continuous longitudinal cuts through the metal strip. Understanding the slitting process helps you optimize production efficiency and output quality.
Coil Loading & Decoiling
The master coil is loaded onto the decoiler using a coil car. The hydraulic expansion mandrel grips the coil securely. The strip is then fed into the line at controlled speed.
Strip Straightening
The material passes through pinch rolls and a straightener to remove coil set and ensure the strip enters the slitter head flat and aligned.
Precision Slitting
Rotary circular knives mounted on upper and lower arbors cut the strip into multiple narrower widths. Knife overlap and clearance are precisely set for clean, burr-free edges.
Scrap Collection
Edge trim (scrap) from both sides is separated and wound onto scrap winders for recycling. This ensures only usable strips proceed downstream.
Tension Control
The slit strips pass through a loop pit or tension station where controlled tension is applied to each strip individually before recoiling.
Recoiling
Individual strips are wound onto the recoiler with separator discs between each coil. Proper tension ensures tight, uniform coils ready for shipment or further processing.
Types of Slitting Lines We Manufacture
Friend Engineering Works manufactures various slitting line configurations to match different material types, thicknesses, and production requirements. Choose the right type based on your processing needs.
CR (Cold Rolled) Slitting Line
Best For: Precision applications requiring excellent surface finish
- High-precision slitter head
- Gentle material handling
- Surface protection systems
- Tight width tolerances ±0.1mm
HR (Hot Rolled) Slitting Line
Best For: Heavy-gauge materials for structural applications
- Heavy-duty construction
- High-torque drives
- Robust slitter arbors
- Scale-resistant components
Stainless Steel Slitting Line
Best For: SS 304, 316, 430 grades requiring surface protection
- Plastic interleaving option
- Paper application
- Scratch-free handling
- Precision edge quality
High-Speed Slitting Line
Best For: High-volume production with quick turnaround
- Advanced tension control
- Quick changeover
- Automated operation
- Continuous production capability
Key Components of a Slitting Line
A complete slitting line consists of several precision-engineered components working in synchronization. Each component plays a critical role in achieving consistent output quality.
| Component | Function |
|---|---|
| Decoiler | Holds and unwinds the master coil at controlled speed. Features hydraulic expansion mandrel and optional coil car for safe loading. |
| Pinch Roll Unit | Guides the strip into the line and maintains proper tension between decoiler and slitter head. |
| Edge Trimmer (Optional) | Removes damaged or irregular coil edges before slitting for consistent strip widths. |
| Slitter Head | The heart of the line—precision circular knives on arbors perform the actual cutting. Adjustable for various width combinations. |
| Scrap Winder | Collects and winds edge trim into manageable coils for recycling. Automatic ejection for continuous operation. |
| Loop Pit / Looper | Creates a buffer zone allowing speed variations between slitting and recoiling. Maintains strip tension. |
| Tension Station | Applies individual tension to each slit strip ensuring tight, uniform recoiling. |
| Recoiler | Winds finished strips with separator discs. Features expanding drum and provisions for strapping. |
Why Choose Friend Engineering Works Slitting Lines?
Compare our slitting line specifications with industry standards to see the Friend Engineering Works advantage.
| Feature | Friend Engineering | Industry Average |
|---|---|---|
| Manufacturing Experience | 30+ years since 1994 | 10-15 years |
| Maximum Coil Weight | Up to 40 tons | 20-25 tons |
| Width Tolerance | ±0.1mm | ±0.3mm |
| Line Speed | Up to 150 m/min | 80-100 m/min |
| After-Sales Support | 24/7 Pan-India coverage | Limited regional |
| Customization | Full custom solutions | Standard models only |
| Installation & Training | Included | Extra cost |
Specifications
Our Slitting Line is built to handle demanding industrial requirements. Custom specifications are available to match your exact processing needs.
| Coil Width Capacity | Up to 2000mm |
| Thickness Range | 0.10mm - 10mm |
| Maximum Coil Weight | Up to 40 tons |
| Line Speed | High/Medium as per requirement |
| Control System | PLC with HMI Touch Panel |
| Compatible Materials | CR, HR, Stainless Steel, Aluminum |
| Power Supply | 415V, 3 Phase, 50Hz |
| Slitting Accuracy | ±0.1mm |
Your Benefits
Investing in our Slitting Line delivers measurable improvements to your operations.
- Reduce material waste by up to 15%
- Increase production efficiency
- Consistent strip width accuracy
- Lower operating costs
- Quick coil changeover
- Minimal maintenance requirements
Where Our Slitting Line is Used
Trusted by industries across India for reliable coil processing solutions.
Why Choose Friend Engineering Works?
With over 30 years of experience manufacturing coil processing equipment, we deliver quality, reliability, and exceptional service.
30+ Years Experience
Three decades of expertise in designing and manufacturing industrial coil processing machinery.
Made in India
All equipment manufactured at our facility in Maharashtra with stringent quality controls.
Custom Solutions
Every machine tailored to your specific processing requirements and production needs.
After-Sales Support
Comprehensive installation, training, and maintenance support throughout equipment lifecycle.
Frequently Asked Questions
Find answers to common questions about Slitting Line from Friend Engineering Works.
Explore Related Equipment
Complete your coil processing line with our other industrial machinery.
Ready to Discuss Your Slitting Line Requirements?
Our engineering team will help you select the right configuration for your specific processing needs. Get a detailed quote with specifications tailored to your requirements.
